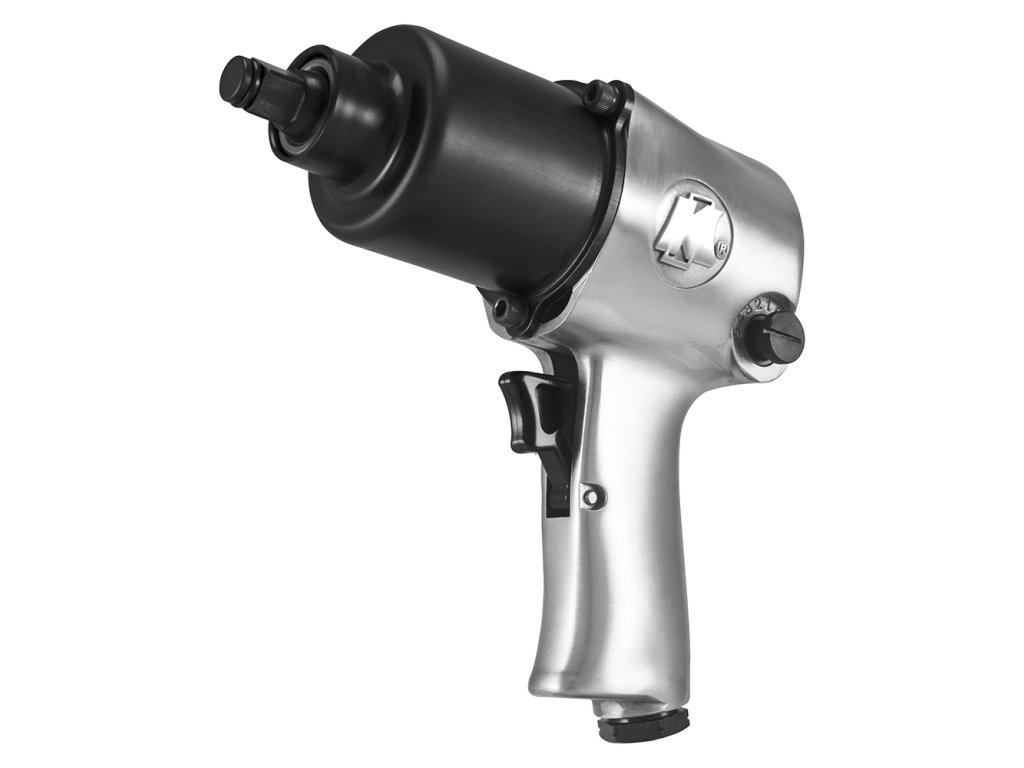

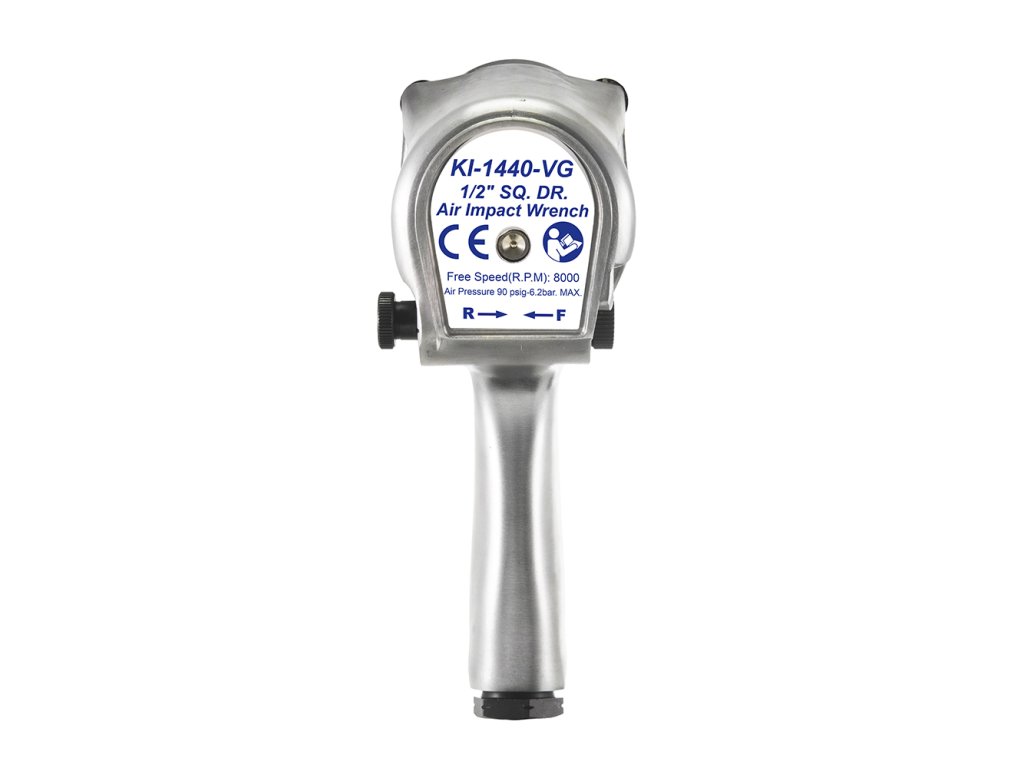

1/2" SQ. DR. Heavy Duty Air Impact Wrench

Code: KANPTKI1440VG
Not rated
€87,82 / pcs €105,38 incl. VAT
In stock (1 pcs)

Detailed information

Product detailed description

Dimension
Length 1 - Imperial (inch): 7.4
Length 1 - Metric (mm): 188

Weight
Imperial (lb): 5.73
Metric (kg): 2.60

Power
Power Source: Compressed Air
Recommended Air Inlet Pressure (psi): 90
Recommended Air Inlet Pressure (bar): 6.2
Avg. Air Consumption (cfm): 4.0
Avg. Air Consumption (L/min): 113
Air Inlet (inch): 1/4
Air Hose I.D. (inch): 3/8
Exhaust Direction: Front Exhaust

Motor
Motor Type: Air Rotor
Speed of Motor (rpm): 8,000

Transmission Mode
Torque Transmission Mechanism: Twin hammer clutch

Capability
Working Torque at 5th sec (Nm): 814
Working Torque at 5th sec (Ft-lb): 600

Holder
Anvil Length (inch): Standard
Anvil Shape: Square Drive (inch)
Anvil Size - Square Drive (inch): 1/2

Safety Requirements
Machinery Safety Directives: 2006/42/EC
Risk Assessment & Risk Reduction: ISO 12100
Safety Requirements: ISO 11148-6
Vibration Level: ISO 28927-2
Noise Level: ISO 1574

EC Declaration
CE Vib. & Sound Test Report No.: 2003004
Sound Pressure db (A): 100
Sound Power db (B): 111
Sound - K db: 3
Vibration M/S^2: 8.31
Vibration -K: 0.5
